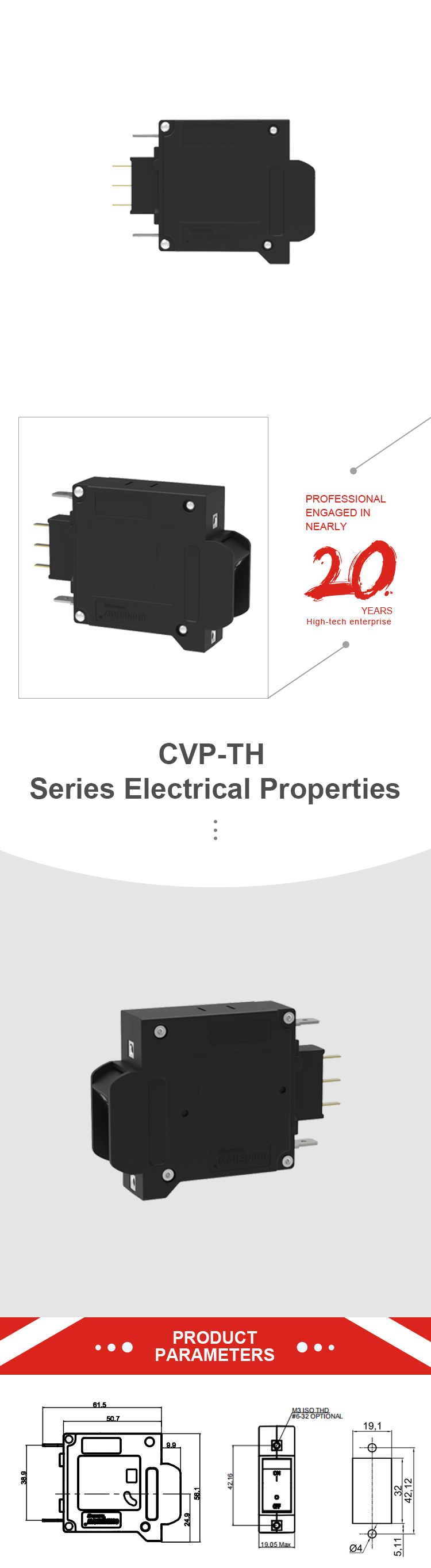

現在地: ホームページ » 製品 » 油圧磁気サーキットブレーカー » CVP-THシリーズ » アングルロッカーアクチュエータ » CVP-TH ガード補助スイッチとタブ (QC250) 1P を備えた油圧式磁気遮断器アングルロッカーアクチュエータ

製品検索

製品カテゴリ

Number of Poles	1,2,3 poles (optional)
CURRENT RATINGS	AC 0.1-50A(1&2&3POLES) DC 0.1-50A(1&2&3POLES)
MAXIMUM VOLTAGE	250V AC,50/60Hz 80V DC
VOLTAGE COIL	6V DC,12V DC;120V AC
AUXILIARY SWITCH RATING	SPDT;7A,250V AC,7A(Res),28V DC,4A(Ind)0.25A-28V DC,0.1A-125V AC (optional)
INSULATION RESISTANCE	≥100MΩ at 500V DC
DIELECTRIC STRENGTH	1500V,50/60Hz between terminals for eletrical 50/60Hz
RESISTANCE/ IMPEDANCE	The value between line and load terminal under ON status
ENDURANCE	Mechanical life is 10k cycles(6 times operation per min.)and electrical life is 6k cycles at rated current and voltage
TRIP-FREE	The circuit breaker will tripped inside even if the handle forcibly held in the ON position when overload
TRIP INDICETION	Handle is in OFF position when overloaded.For mid-trip,handle is in middle position when overloaded
TEMPERATURE OPERATION	-40℃ to +85℃
RECOMMENDED TORQUE	#6-32 or M3 mounting inserts 0.8-1.0 Nm; #8-32 or M4 screw terminals 1.4-1.7 Nm; #10-32 or M5 screw terminals 1.7-2.3 Nm; #1/4-20 or M6 screw terminals 3.4-4.0 Nm
MAXIMUM POLES	1 Pole
MOUNTING TYPE	Snap-in,screw-in (optional)
TERMINALS	Push-in(Q.C) , upturning,screw-in,bus screw-in (optional)
ACTUATOR	paddle,baton,push-pull,push to reset button and color,legend can be customized (optional)
COLOR OF CASE	black,grey(optional)
STANDARD	EN60934,UL1077,GB17701,UL489A
